AetherGraph — Key Concepts Overview

AetherGraph rethinks how agentic systems are built: graphs are agents, context is the runtime fabric, and execution is event‑driven. This document lays out the philosophy and the essential architecture so you can quickly reason about how it differs from typical frameworks—and how to use it effectively.

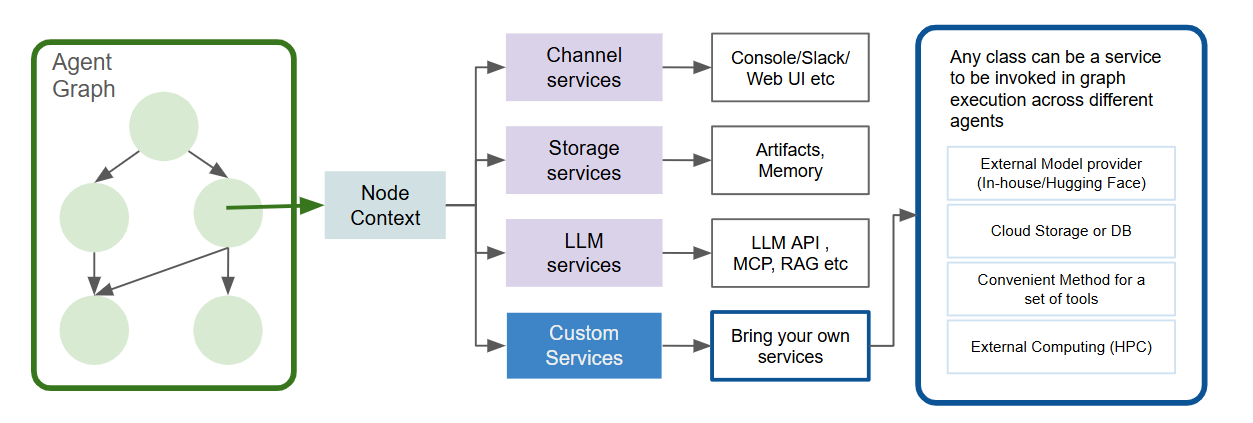

1. Introduction: Graphs + Context

overview

AetherGraph departs from most agent frameworks in two fundamental ways:

  1. Every agent is a graph. You model behavior as a directed acyclic graph (DAG) with nodes that can expand dynamically (reactive) or be planned statically.
  2. Every node runs inside a NodeContext. The context is your per‑node control plane that exposes rich, injectable services.

NodeContext services include (built‑ins plus anything you add):

  • Channels (Slack, Console/Web, native UI …) for I/O and interaction
  • Artifacts (blob store) for large files and generated assets
  • Memory (history + summaries + optional RAG)
  • KV & Logger for quick state and observability
  • LLM / MCP / RAG bridges for model calls and tool use
  • Visualization (only with Aethergraph UI) for automatic presentation of run plots
  • Run Management for nested graph calling with and wihtout blocking
  • Your custom services registered at runtime

The system is pythonic, reactive, and extensible: author graphs directly in Python, then let context services handle communication, persistence, and orchestration details.

2. Graphs as Agents

AetherGraph unifies two modes under one mental model:

Reactive agent — @graph_fn

  • Executes immediately when called (behaves like an async Python function).
  • Expands into an implicit DAG as tools run.
  • Perfect for interactive, service‑rich, or conversational workflows.

Static agent — @graphify

  • First builds a concrete TaskGraph, then executes it via the scheduler.
  • Ideal for stable, deterministic, or large‑scale workflows.

One model, two tempos. Iterate fast with @graph_fn; snap to repeatable DAGs with @graphify.

3. Context as the Runtime Fabric

Every node (and each graph_fn invocation) receives a NodeContext. Think of it as a scoped service locator with lifecycle hooks.

  • Per‑node scoping → independent logging, persistence, messaging.
  • Injectable services → bind built‑ins or your own with simple registration.
  • Sidecar‑friendly → channel adapters and stores can run out‑of‑process.

Common patterns:

  • context.channel().ask_text() to collect input from a user/UI.
  • context.artifacts().save(...) to persist files and structured outputs.
  • context.memory().record(...) to capture provenance and summaries.
  • context.llm().chat(...) to call your configured model provider.

4. Event‑Driven Execution & Waits

AetherGraph is event‑driven (not polling). Nodes suspend when waiting for input or an external event; the runtime persists and resumes continuations on demand so suspended nodes consume little to no CPU/RAM. Two primary wait styles are exposed:

  • Cooperative waits — inline await for short, interactive flows where the coroutine remains in memory for low‑latency response.
  • Dual‑stage waits — split a node into setup and resume phases; the continuation is durably stored so the process can free resources until an event triggers resume.
Mode Description CPU/RAM Ideal for
Cooperative waits Inline await (e.g., await context.channel().ask_text()); coroutine stays in memory Minimal Small reactive loops, interactive sessions
Dual‑stage waits Split node into setup/resume; continuation stored in a durable store Zero when paused Large DAGs, long‑lived pipelines
Manual checkpoints User‑managed state snapshot/restore User‑managed Legacy integration, custom control

Dual‑stage waits + event routing enable massive concurrency with tiny footprint.

5. Execution & Scheduling

Each graph runs under a scheduler that selects ready nodes and respects your concurrency caps. Within a graph you get async DAG orchestration by default.

Cross‑graph orchestration

AetherGraph intentionally avoids a heavyweight orchestrator in the OSS core. For concurrent runs across multiple agents/graphs, use idiomatic Python:

# Concurrent reactive runs
await asyncio.gather(
    graph_fn_agent_a(...),   # a @graph_fn with async __call__
    graph_fn_agent_b(...),
)

# Sequential orchestration
await graph_fn_agent_a(...)
await graph_fn_agent_b(...)

6. Extensibility Everywhere

Pure Python—no DSLs, no codegen.

  • Tools: @tool to define reusable, typed primitives.
  • Graphs: @graphify to materialize a DAG for repeatable runs.
  • Services: register_context_service() to inject your own capabilities.
  • Adapters: extend ChannelBus to new transports (Slack, Web, PyQt, …).

Example (sketch)

Define a @tool:

@tool(name="analyze", outputs=["val"])
def analyze(x: int) -> int:
    return {"val": x * 2}

Define a @graph_fn (@tool is optional)

@graph_fn(name="demo")
async def demo(*, context):
    y = await analyze(21)
    await context.channel().send_text(f"Answer: {y}")

7. How AetherGraph Differs

Area AetherGraph Typical frameworks
Runtime Unified Python, event‑driven Split control planes, mixed models
Waits Zero‑CPU dual‑stage waits Blocking awaits, threads, polling
Context Rich per‑node runtime fabric Globals, hidden singletons
Composition Dynamic (graph_fn) + Static (@graphify) Usually one or the other
Scheduling Async DAG scheduling per graph Step‑based loops, less reactive
Extensibility Decorators + Python APIs Fixed plugin systems
Provenance Built‑in memory/artifacts External or ad‑hoc

8. Takeaways

AetherGraph bridges interactive research and deterministic automation:

  • React first, then structure for production.
  • Keep state, context, and scheduling where they belong—with the nodes.
  • Use event‑driven waits to scale without idle compute.
